Deimus™ T- 10i

The minimalist choice

Impetux’s exclusive, patented technology leads you where other force methods cannot. Our products represent a change in the force measurement field, making possible and simple the experiments where traditional trap stiffness calibration fails.

The minimalist option of the T-series allows you to easily incorporate the momentum-based technology to multiply the possibilities of your optical trapping setup at a low price. Its versatility and flexibility allows you to install the same instrument in different commercial microscopes and even in custom-built systems.

The key of our technology is that our systems measure the force as a derived magnitude of the direction of propagation of the beam, instead of the sample position, which provides a direct route to the force. After an accurate calibration at factory, the deflection of the beam produced by the sample directly corresponds to the optical force exerted on the particle. This gives our technology an advantage, as no restrictions on the sample are imposed.

Data Acquisition and Processing

For a complete solution, the Deimus™ T-10i additionally integrates a traditional calibration mode, to obtain trap stiffness and position measurements with nanometer precision.

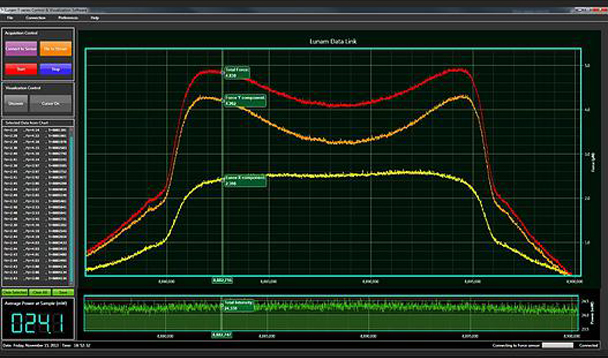

The standalone Windows application makes easy for the user to make these calibrations, as well as acquire, visualize and store the data generated by the Deimus™’s sensor. Data can be streamed to disk in real time for extended periods of time and the files are compatible with a host of data processing software, including Excel, MATLAB, LabVIEW, and Origin.

We can optionally provide a companion data processing suite. The application includes a complete set of visualization modes and mathematical functions and is optimized to handle the large data sets generated in many experiments.

Technical specifications

  • Dual measurement mode: force measurements and trap stiffness calibration for position tracking.
  • Compact opto-mechanical design.
  • Straightforward installation and tuning routines ensure correct measurements and reproducibility (eyepiece with Bertrand lens incorporated or Centering Scope required).
  • High Numerical-Aperture (NA=1.4) immersion optics.
  • Adaptable to a wide range of wavelenghts
  • Maximum laser power at the sample: 300 mW (Check with us different power ranges to fit your needs)
  • Compatible with custom-made microscopes and commercial systems:
  1. Nikon
  2. Zeiss
  3. Olympus
  • Up to 20 kHz, 16-bit, analog-to-digital conversion.
  • Direct PC communication through Hi-speed 2.0 USB port.
  • Highly-regulated, low-noise linear power supply (models with 100/120/220/240 VAC- 50/60 Hz available).
  • Acquisition software and LabVIEW libraries included.
  • Dimensions of the sensor head (L x H x W): 18 x 17 x 13 cm

Contact us for more information.

Off the beaten track

Discover what Deimus T-10i
can do for you

NON-SPHERICAL SAMPLES

Our patented technology permits measurements of force with non-spherical particles.

…read more

COMPLEX TRAPPING BEAMS

The Deimus™ provides access to accurate force measurements to customers working with non-Gaussian beams or multiple permanent traps.

 NON-VISCOUS MEDIA

Direct force measurements inside viscoelastic materials, changing environments or living cells are now possible.

…read more

Special features

HIGH FLEXIBILITY

Deimus™’ compact design makes the system compatible with both custom-made microscopes and commercial systems:

  • Nikon
  • Zeiss
  • Olympus

EASY INSTALLATION AND OPERATION

 The Deimus™ replaces the microscope condenser and can be installed and set in operation through a simple procedure.

OPTO-MECHANICAL AND ELECTRONIC SYSTEMS

Our instruments have been designed with the utmost quality in mind. The Deimus™ incorporates immersion optics for maximum signal sensitivity, especially when working with small samples or at low powers. The integrated analog and digital electronics, featuring high- resolution AD converters ensure acquisition fidelity. A careful design guarantees mechanical stability.
