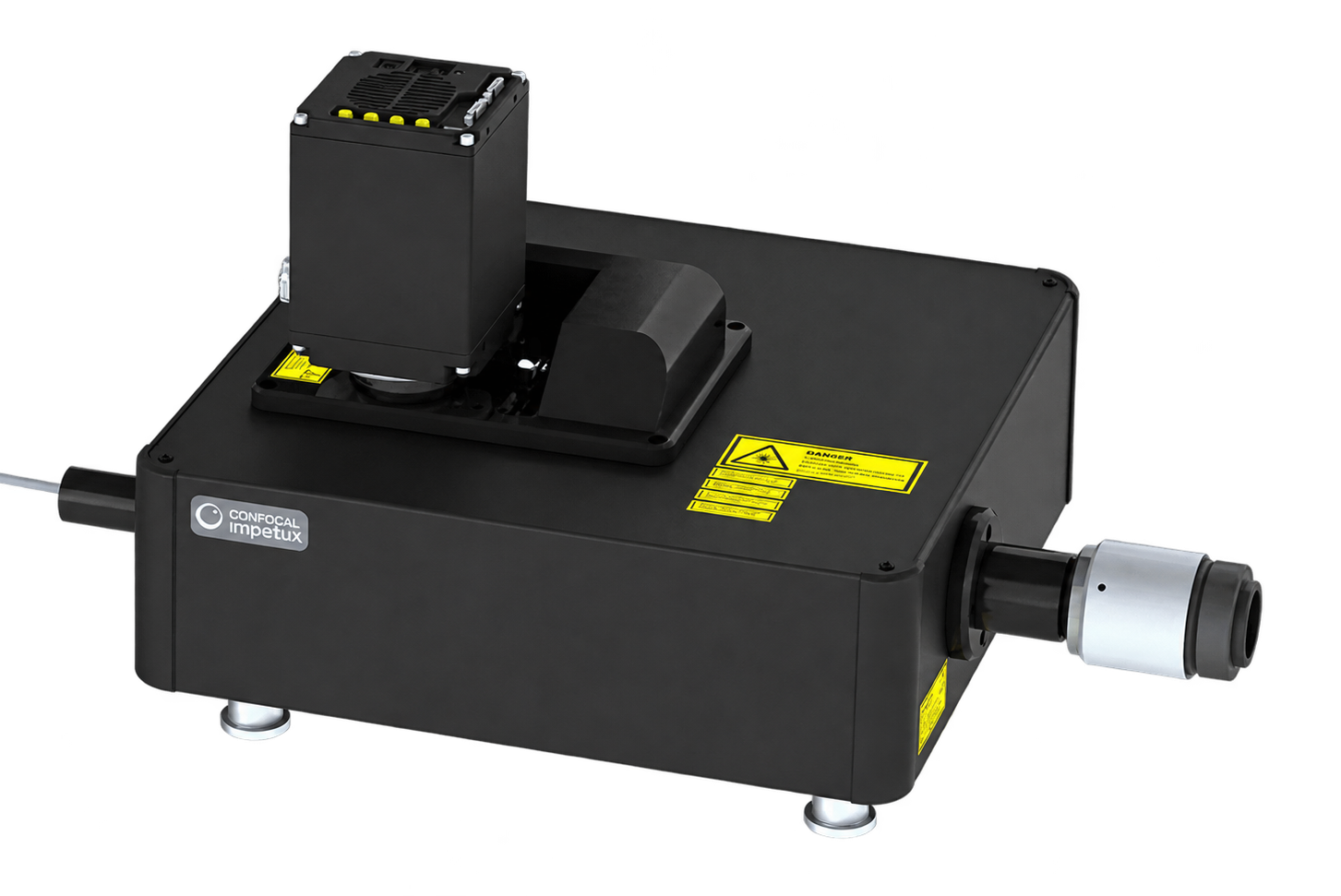

PhaseStreak introduces a solid-state approach to confocal microscopy, combining fast, deep imaging with direct control over illumination and optical sectioning without mechanical scanning elements or physical pinholes.
PhaseStreak is designed to adapt to different samples and imaging requirements. It combines fast acquisition, flexible control over illumination and strong optical sectioning in a robust platform designed for minimal routine maintenance.
No mechanical scanners or physical pinholes.
Camera-limited confocal and widefield acquisition.
Confocal, widefield and brightfield imaging.
Imaging across a large field of view.
Electronically tune the balance between background rejection and signal collection.
Optical sectioning across thick samples.

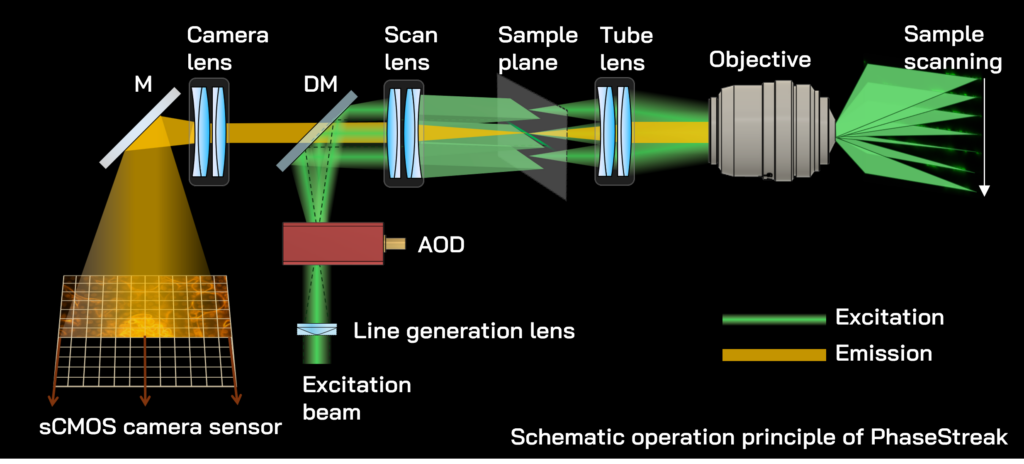

PhaseStreak scans a focused excitation line across the sample using an acousto-optic deflector synchronised with the rolling shutter of a high QE sCMOS camera. The active sensor rows form an electronically adjustable confocal detection slit that suppresses out-of-focus fluorescence and enables optimizing the balance between background rejection and signal collection for each sample.
Fast, precise and inertia-free control of excitation laser beam.
An entire line of pixels is acquired simultaneously, enabling confocal imaging at demonstrated speeds of up to 230 fps.
With no mechanical scanners or physical pinholes, PhaseStreak minimizes alignment drift, mechanical wear and avoids dust-related pinhole contamination.
As imaging depth increases, scattering and out-of-focus fluorescence progressively reduce contrast. PhaseStreak combines selective confocal detection with efficient signal collection to preserve image clarity throughout thick samples.
3D volumetric view of a cleared mouse liver tissue down to 400 µm. Sample: 550 µm cleared mouse liver section; SYTOX Orange/nuclei (green), Alexa Fluor 647-TUJ1/nervous system (magenta).
Following biological dynamics over time requires a careful balance between image quality and sample exposure. PhaseStreak gives you direct control over where excitation is delivered and how fluorescence is collected, helping you adapt that balance to each experiment.
Achieve high image contrast with lower laser power.
Distributed line illumination and efficient signal acquisition minimise the illumination dose required for high-contrast imaging.
Illuminate only the area you need while increasing acquisition speeds up to the kHz range.
Adapt optical sectioning and signal collection to each sample.
Multicolor confocal image of BPAE cells acquired with PhaseStreak. Nuclei are labelled with DAPI (magenta), F-actin with Alexa Fluor 488 phalloidin (cyan) and mitochondria with MitoTracker Red CMXRos (yellow). Sample: Thermo Fisher FluoCells Prepared Slide #1, F36924. Objective: Plan Apo 60x WI NA1.2

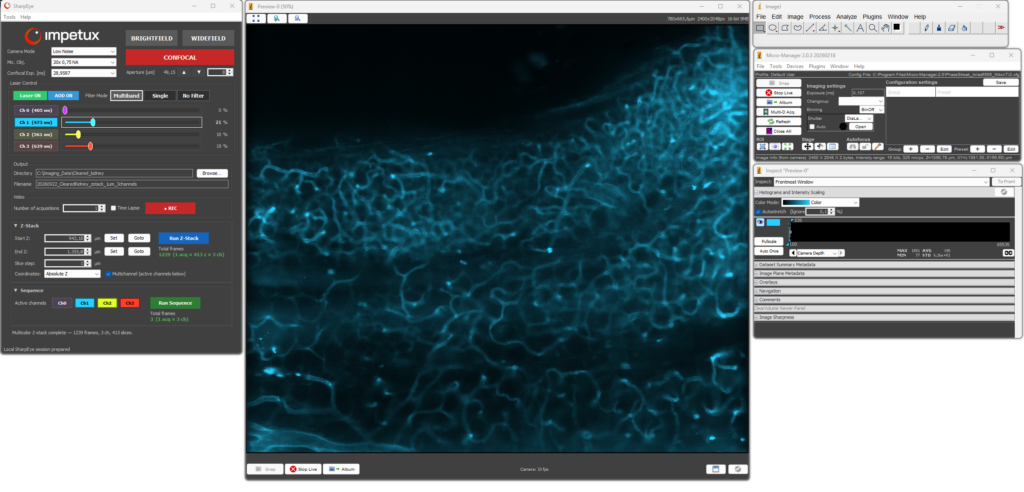

SharpEye brings all PhaseStreak controls and automated acquisition workflows into a single, self-contained interface, combining streamlined operation with the flexibility of the Micro-Manager ecosystem.
Switch between confocal, widefield and brightfield imaging in one click.
Adjust the confocal detection aperture and tune signal collection directly from the interface.
Control laser power independently at 405, 473, 561 and 639 nm and configure sequential multichannel acquisition.
Configure and run multichannel Z-stacks, time-lapse recordings and acquisition sequences from the same workspace.
Compatible with established Fiji/ImageJ visualisation and analysis workflows.

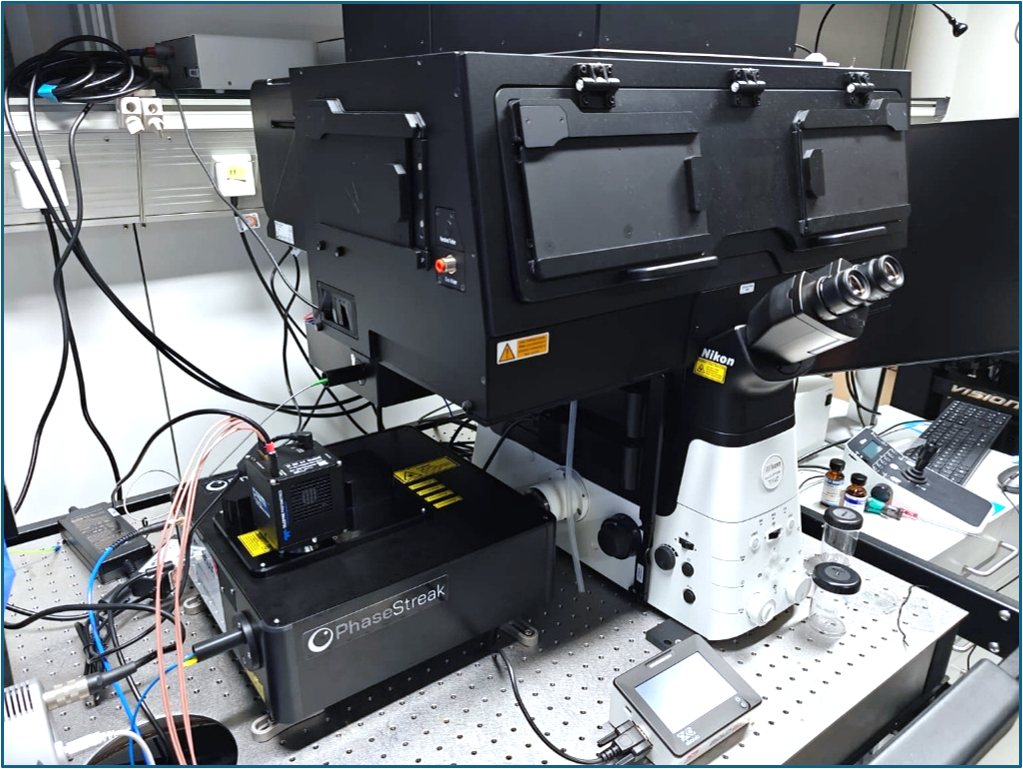

PhaseStreak integrates via the camera port of compatible inverted microscopes and can also be combined with SENSOCELL+ for correlated force and fluorescence measurements.
* Acquisition speed is camera-limited. Demonstrated confocal imaging at 230 fps using a Tucsen Aries 6506 camera in Speed mode over 2400 × 2048 pixels, corresponding to 20.5 mm diagonal field of view.
** Demonstrated with a Hamamatsu ORCA-Fire camera over its full 4432 × 2368 pixel sensor area.
Discover how PhaseStreak’s solid-state architecture brings greater speed, flexibility and control to your imaging workflows.
