Mechanotransduction of the cell nucleus & sub-cellular mechanics

Study the role of cell nucleus mechanotransduction pathways in cellular mechanosensation and how the nucleus mechanical properties regulate cellular activity such as cell migration, development or disease with SENSOCELL optical tweezers. Create your own Creep and Stress-Relaxation routines for intracellular characterization using SENSOCELL’s force clamp mode and automatized trap motion.

Mechanotransduction studies of the cell nucleus with optical tweezers

The role of the cell nucleus in mechanotransduction

Study the role of the nucleus in cellular mechanotransduction and how it is connected to the cytoskeleton with SENSOCELL. Perform experiments using isolated nuclei as samples or in in vivo models such as adhered, suspended or confined cells, even inside living embryos. With SENSOCELL, you can easily program your own routines using our LightAce SDK to mechanically stimulate the cells nuclei while recording force and displacement data and do everything with simultaneous fluorescence imaging to get a whole picture of the ongoing processes.

Cell nucleus indentation & subcellular mechanics

Indent and stretch the cell nucleus using internalized microspheres or internal cellular structures such as lipid droplets as probes while monitoring the involved time-force and time-displacement curves. In this way, it is possible to extract information of the cell nucleus stiffness and viscoelastic properties. In a similar fashion, other subcellular structures can be trapped and used as probes to characterize the cellular medium in creep and stress-relaxation tests (see application example 1). To see examples of active microrheology experiments in cells, please visit our microrheology application page.

Application example 1. Intracellular creep and stress-relaxation tests in living yeast cells.

Application example 2. Cell nucleus indentation for mechanotransduction studies in suspended and confined stem cells.

Application example 3. Indentation of cell nucleus in HELA cancer cells and RPE-1 human retina cells.

Would you like to try SENSOCELL with your biological system samples? Let’s do it, contact us

Intracellular Creep & Stress-Relaxation tests


Video of a Creep & Stress-Relaxation test performed inside a living yeast cell.

In this example, the vacuole of a yeast cell was optically trapped and used to probe the cellular medium in two ways:

First, a Creep test: the cell’s vacuole movement is tracked while a constant force is applied on it using the force clamp mode. A constant force of 5 pN was previously set using the force clamping tool. Force and position signals can be read from the plot panel (orange and blue lines respectively). When the force clamp is applied, the force applied on the vacuole is fixed to 5 pN and the position signal follows the classical behaviour expected for a viscoelastic medium. When the force clamp is stopped, the force signal relaxes back to zero (negative values) and the position signal abruptly shifts to zero.

Next, a Stress-Relaxation test is launched using the same trapped vacuole as a probe. In this case, a trajectory is applied to the optical trap to move it 300 nm to the right in 0.1 s while the applied force is tracked. A peak in the force is observed when the trap position is shifted followed by a relaxation of the force takes place while the trap remains in a fixed location.

Cell nucleus indentation for mechanotransduction studies in suspended and confined stem cells

The following images and videos are courtesy of the labs of Dr. Verena Ruprecht (Centre of Genomic Regulation, CRG), Dr. Stefan Wieser and Dr. Michael Krieg (Institute of Photonic Sciences, ICFO). These labs collaborated in a work where SENSOCELL optical tweezers was used to indent stem cell nuclei in suspension or confined conditions using cell extracts from zebrafish embryos as biological samples. This example is taken from a work by these authors published in Science and dealing with the role of nucleus mechanotransduction pathways to control cell deformation behavior and cell migration plasticity.

NEW! Video Protocol for Direct Force Measurements of Subcellular Mechanics in Confinement using Optical Tweezers

Here, the authors present a protocol to investigate the intracellular mechanical properties of isolated embryonic zebrafish cells in three-dimensional confinement with direct force measurement by an optical trap.

Introduction / Single-cell Preparation and Staining / Optical Trapping (OT) Chamber Spacing and Optical Tweezers Start-up / Alignment of the Optical Force Sensor / Performing the Nucleus Indentation Experiments / Results: Measurement of the Forces and Material Properties of the Cell Nucleus Inside Zebrafish Embryo / Conclusion. See full video here.

Cell nucleus mechanotransduction study via indentation with optical tweezers

Cell nucleus indentation experiments

To carry out the experiments, the authors used SENSOCELL optical tweezers to optically trap and manipulate 1 μm fluorescent beads to indent the nuclei of stem cells extracted from zebrafish embryos. The beads had been previously internalized into the 1-cell early embryos. A stress-relaxation routine was programmed to carry out the experiments, consisting in predefining an automatized motion of the trapped microspheres. In this setup, the SENSOCELL optical tweezers platform was combined with a spinning disk confocal unit, thus allowing real-time fluorescence imaging of the stretched nuclei during the experiments.

        cell nucleus mechanotransduction paper experimental sketchCell nucleus indentation with SENSOCELL optical tweezers

Fig. 1 Left: experimental sketch: injected microspheres are optically trapped to indent the nuclei of suspended and confined cells from Zebrafish embryos. Right: cell nucleus indentation experiment performed with SENSOCELL optical tweezers system. The trapped microsphere is pushed against the nucleus (in blue) and moved away after some seconds. The cell (in green) exhibits a bleb at lower side during the measurement.

Optical trap time-position and time-force curves

Before the stress-relaxation routine is launched, the optically trapped bead is some microns away from the nucleus membrane. When the routine is launched, the optical trap moves towards the nucleus at a certain speed until it reaches the nucleus membrane and the indentation process starts. At this point, the optical trapping force increases from zero and gives rise to a force peak. The indentation depth depends on the predefined optical trap trajectory. In this case, the routine was programmed in such a way that the optical trap remained indenting the cell nuclei for 10s. During these 10 seconds, a relaxation of the force is observed. After that, the optical trap goes back to its original position and the recorded force drops down to zero. The following figure shows the optical trap time-position and time-force curves for a single cell nucleus indentation experiment.

Cell nucleus mechanotransduction study via indentation with optical tweezers

Fig. 2 Left: time-position curve of the optical trap for one of the nucleus indentation experiments. The trapped microsphere moves 5 microns towards the cell nucleus in 3 s, indenting it. At t=13s, the optical trap goes back to its original position. Right: force profile normalized to indentation depth for the same experiment as Fig. 3. Once the microsphere remains still indenting the cell nucleus (t=3 s), the force exhibits a characteristic relaxation curve. At t=13s, the particle is moved away and the force drops down to zero.

Characterization of the cell nucleus mechanical properties in suspended and confined cells

Below, we can see some results obtained from an exponential-decay fitting of such force relaxation curves for cells in suspension and cells confined in microchambers. From these fittings the authors obtain the characteristic relaxation time and the static force given by the residual stress applied onto the nuclear membrane for both conditions.

cell nucleus sttiffness in confined and suspended cells

Fig. 4 Top: characteristic decay time of the force relaxation curve for cell nucleus indentation experiments carried out in suspended and confined cells. Bottom: cell nucleus stiffness measured for both suspended and confined conditions.

Indentation of cell nucleus in HELA cancer cells and RPE-1 human retina cells

Similar data to that of the previous example has been obtained in preliminary tests using HELA cancer cells and RPE-1 human retina cells. For these tests, samples were kindly provided by Dr. Aastha Mathur from M. Piel’s lab at Institut Curie. In this case, 3μm beads were internalized in the cells via phagocytosis:

Fluorescence image of cell nucleus in HELA cancer cells and RPE1 human retina cells

Fig. 1 HELA cancer cells (left) and RPE-1 cells (right) with internalized microspheres that were optically trapped and manipulated to indent the fluorescently labelled cell nuclei.

indentation tests for mechanotransduction studies in HELA cancer cells and RPE1 human retina cells

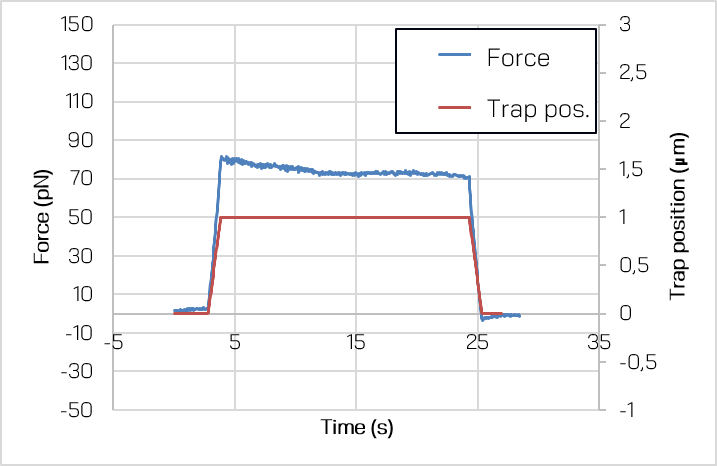

Fig. 2 Time-position and time-force curves obtained during a single HELA cancer cell nucleus indentation test.

Cell nucleus indentaton force relaxation data for HELA cancer cells and RPE1 human retina cells

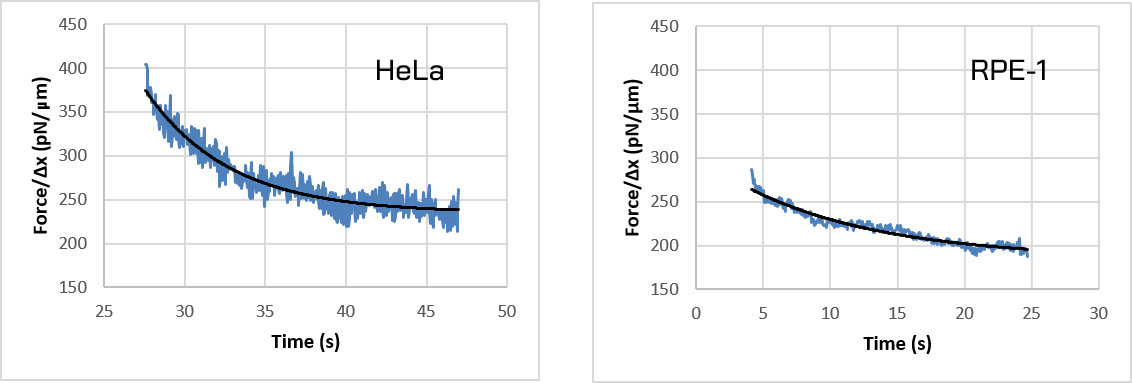

Fig. 3 Relaxation of the applied force normalized to nuclear indentation for tests using HELA and RPE-1 cells.

ublications related with cell nucleus mechanotransduction experiments with our technology:


V. Venturi, F. Pezzano, F. Català-Castro, H.- M. Häkkinen, S. Jiménez-Delgado, M. Colomer-Rosell, M. Marro-Sánchez, Q. Tolosa-Ramon, S. Paz-López, M. A. Valverde, P. Loza-Alvarez, M. Krieg, S. Wieser and V. Ruprecht, “The nucleus measures shape changes for cellular proprioception to control dynamic cell behavior” SCIENCE | 16 Oct 2020: Vol. 370, Issue 6514, eaba2644. DOI: 10.1126/science.aba2644


JoVE Lab Manual - myBarton - Digital Learning​ Frederic Català-Castro, Valeria Venturini, Santiago Ortiz-Vásquez, Verena Ruprecht, Michael Krieg. “Direct Force Measurements of Subcellular Mechanics in Confinement using Optical TweezersJ. Vis. Exp.(174), e62865, doi:10.3791/62865 (2021).
